3'' Mercury Mini-Float Switch
3'' Mercury Mini-Float Switch - Image 2
3'' Mercury Mini-Float Switch - Image 3
3'' Mercury Mini-Float Switch - Image 4
3'' Mercury Mini-Float Switch - Image 5
3'' Mercury Mini-Float Switch - Image 6

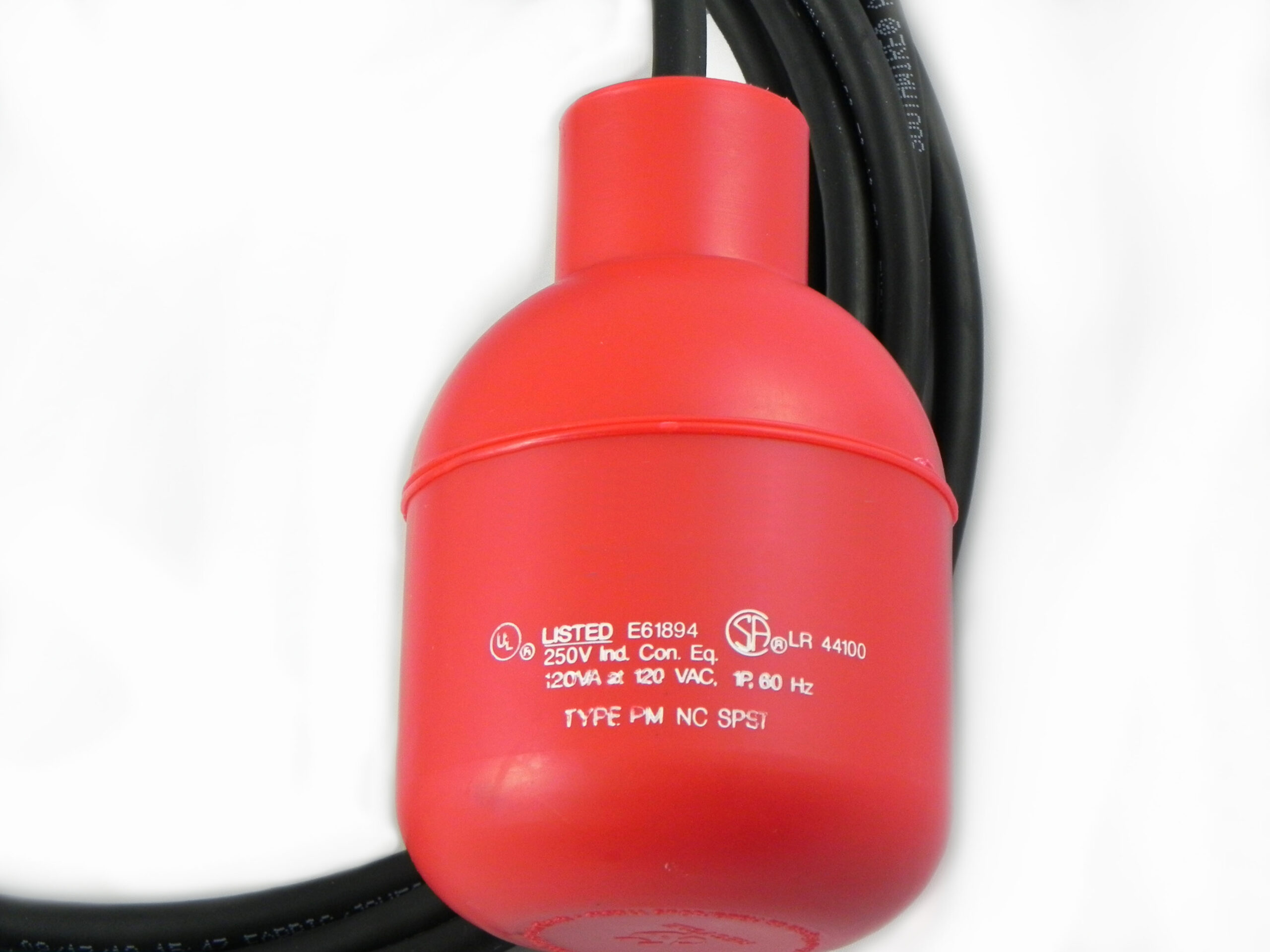

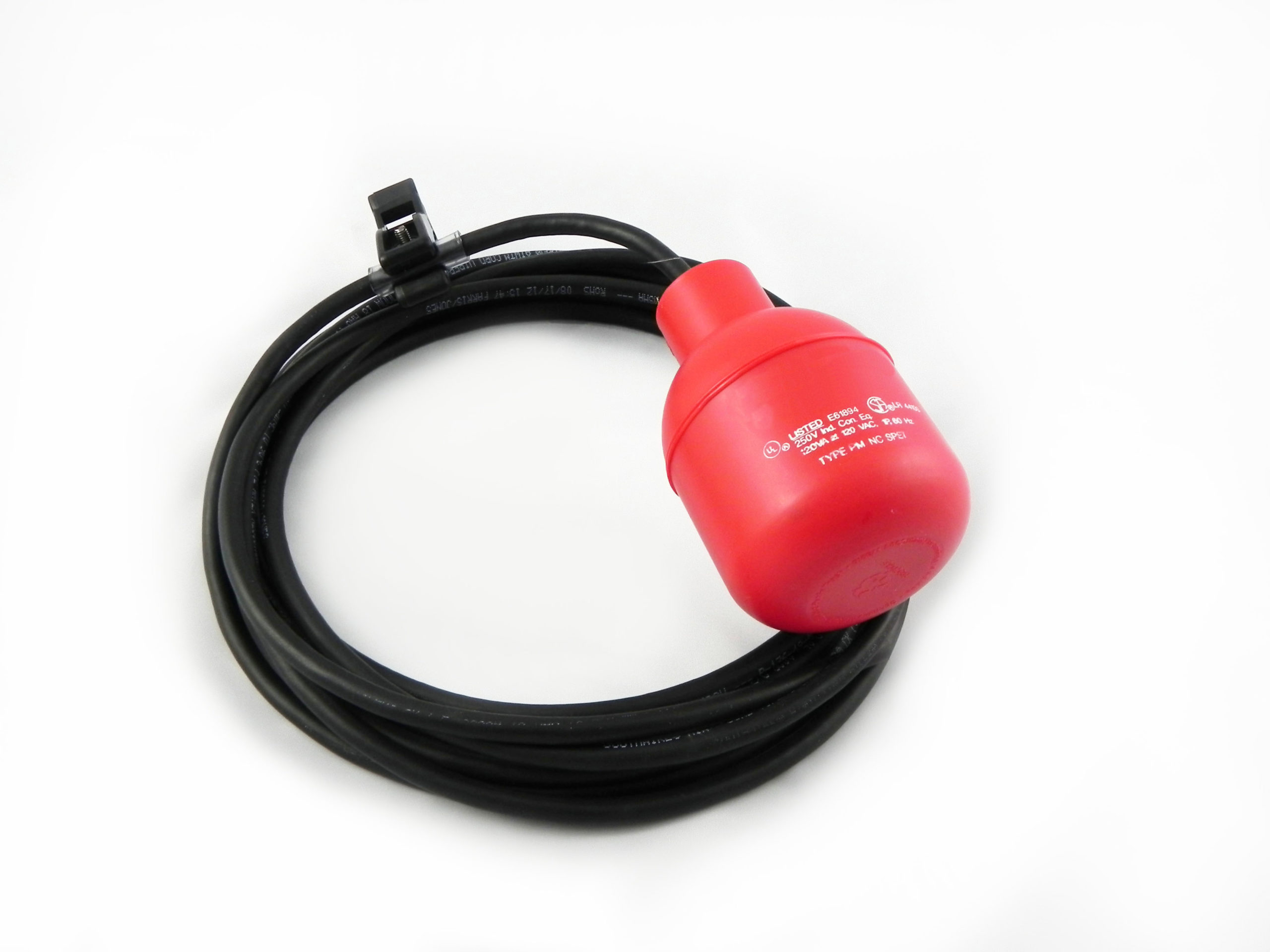

3” Mercury Mini-Float Switch

SKU: Mini-Float

$57.50

Product total
Options total
Grand total
  • Mercury Switch

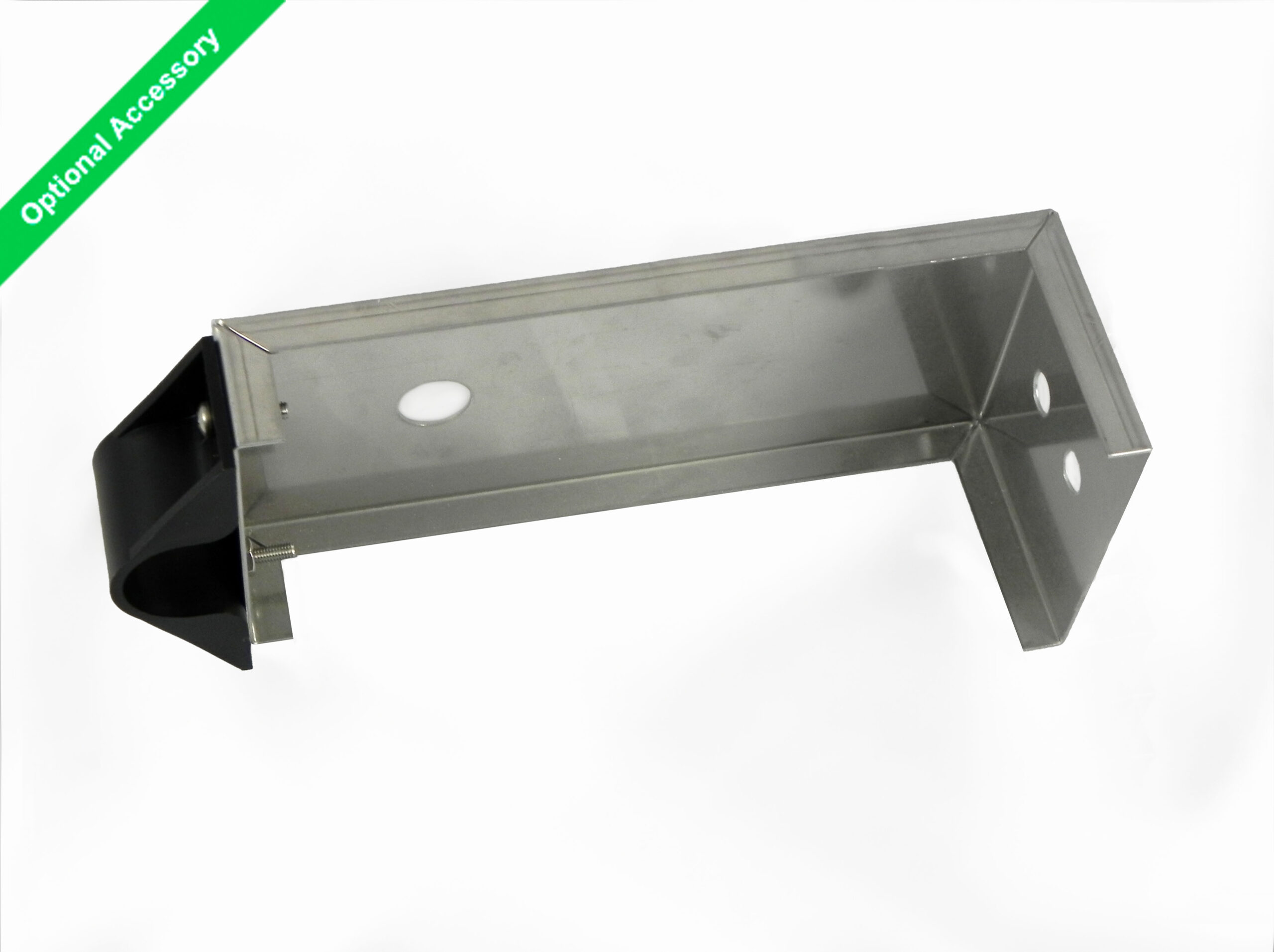

  • Pipe or Suspended Mounting
  • Polypropylene Casing

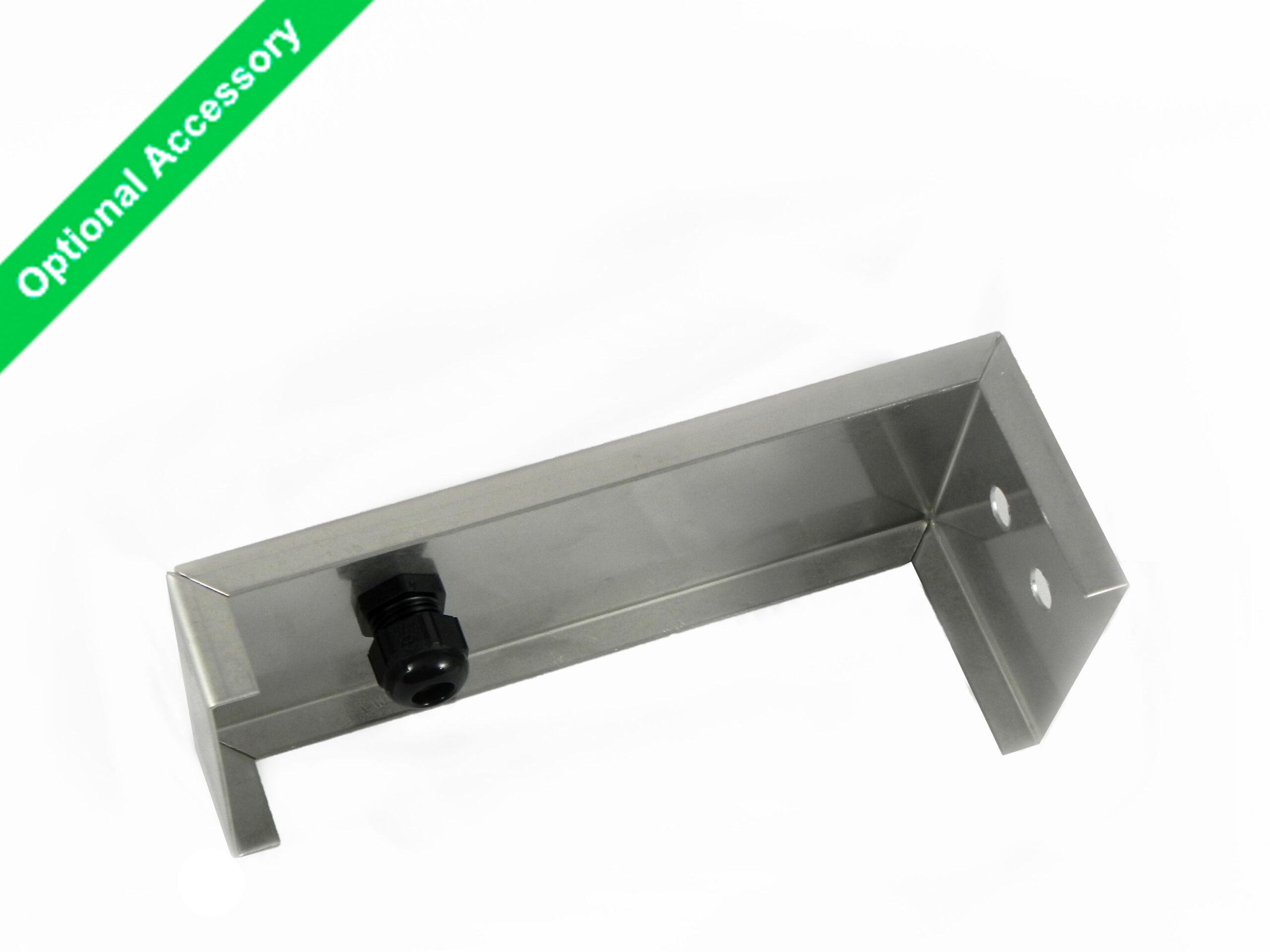

  • Nylon, Stainless Steel Cable Mount
  • PVC Cable Jacket
  • 2 7/8″ Diameter
  • 4.2A at 120VAC, 2.2A at 230VAC
  • Note: The following states ban the use of Mercury Float Switches: CA, CT, IL, LA, MA, ME, MN, NH, NY, RI, VT, WI- The recommended replacement is the Mercury-Free float switches
SKU: Mini-Float Categories: Float Switches, Lift Station Float Switches, Wastewater - Lift Station, Wastewater - Manhole
  • Description
  • Additional information
  • Applications
  • Brochures

Description

Mini-Floats are pilot duty devices designed for small diameter sumps and places where space is a determining factor in the selection of a level control device. Mini-Floats control the function of motor load devices, such as contactors, motor starters, and power relays, to automatically cycle a pump or pumps. They can also be used for alarm signaling devices. Two Mini-Floats are needed for a one-pump operation;three for a two-pump operation.

Additional information

Weight 10 lbs
Dimensions 10 × 10 × 10 in
Model

Mini-Float

Feature

Mercury SwitchPipe or Suspended MountingPolypropylene CasingNylon, Stainless Steel Cable MountPVC Cable Jacket2 7/8" Diameter 4.2A at 120VAC, 2.2A at 230VAC

Suitable Replacement

This product is a suitable replacement for the following: Anchor Scientific Mini-Float PM10NO PM15NO  PM20NO  PM10NC  PM15NC  PM20NC SM10NO  SM15NO  SM20NO&n

Wastewater - Lift Station

Wastewater - Lift Station

Wastewater - Manhole

Wastewater - Manhole

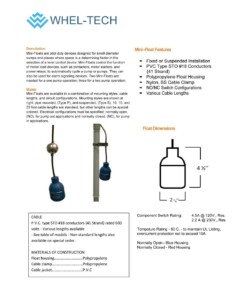

3'' Mercury Mini Float Switch Brochure

3'' Mercury Mini Float Switch Brochure

Float Switch Buoyancy Calculations

Float Switch Buoyancy Calculations
