3” Mercury Plug-In Control Float Switch

SKU: Solo-Float

$44.00

Product total
Options total
Grand total
  • Mercury Switch
  • Neoprene cable
  • Polypropylene Float Housing
  • 15′ Cable Length
  • No Wiring
  • 3” Diameter
  • Omni-directional
  • Various pumping range
  • Corrosion Resistant
  • Easy to Install
  • Note: The following states ban the use of Mercury Float Switches: CA, CT, IL, LA, MA, ME, MN, NH, NY, RI, VT, WI- The recommended replacement is the Mercury-Free float switches
SKU: Solo-Float Categories: Float Switches, Lift Station Float Switches, Wastewater - Lift Station, Wastewater - Manhole
  • Description
  • Additional information
  • Applications
  • Brochures

Description

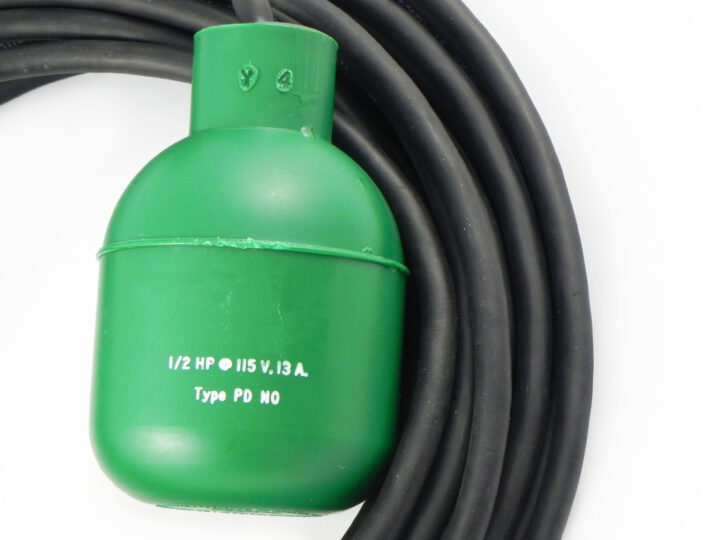

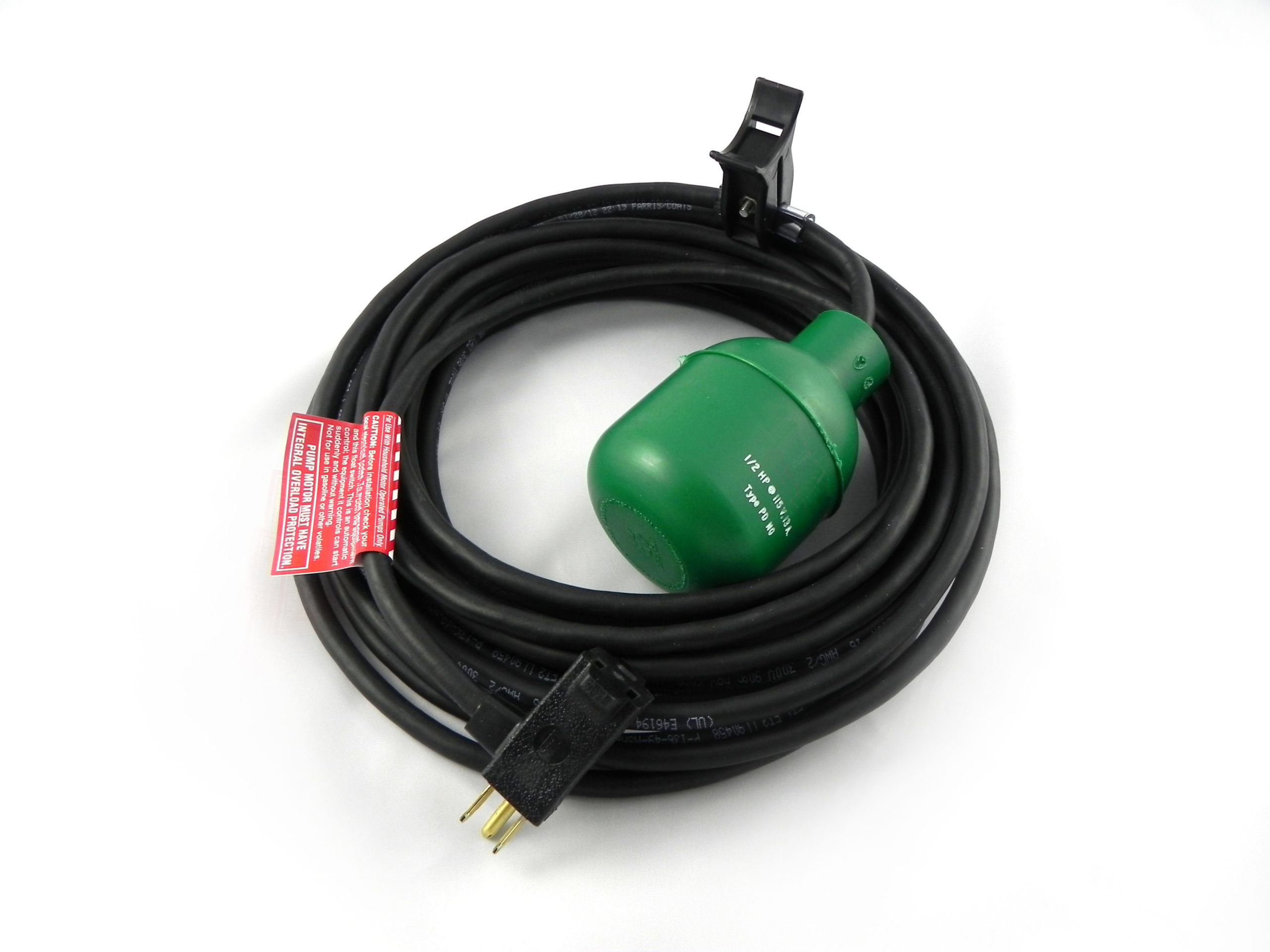

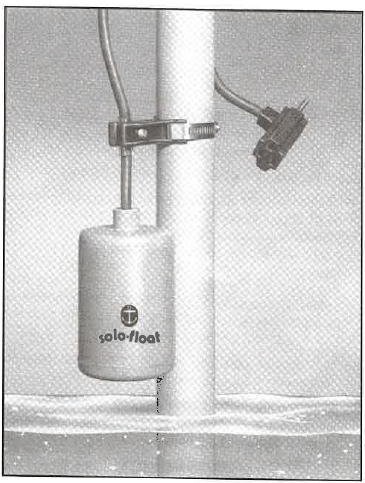

Solo-Float is a direct acting, in-line control system for automatically controlling a 1/2 HP and smaller pump motors. The unit has a piggyback plug attached to the cord, allowing the user to plug the pump plug directly into it, and then plug the entire unit into a standard grounded outlet. The Solo-Float is furnished with an adjustable strap for mounting to the pump discharge pipe. Standard units are pre-set at the factory for a nine inch pump down range, but Solo-Floats can easily be adjusted to various pump down cycles by shortening or lengthening the cord length at the pivot point. The Solo-Float is also omni-directional; the pumping differential is maintained in any horizontal plane.

Additional information

Weight 4 lbs
Dimensions 10 × 10 × 10 in
Model

Solo-Float

Feature

Mercury SwitchNeoprene cablePolypropylene Float Housing15' Cable Length3'' DiameterNo WiringSingle float in sumpOmni-directionalAdjustable clamp (1-3'' Range)Various pumping rangeCorrosion ResistantE

Suitable Replacement

This product is a suitable replacement for the following: Anchor Scientific Solo-Float PD15NO PD15NC Others

Wastewater - Lift Station

Wastewater - Lift Station

Wastewater - Manhole

Wastewater - Manhole

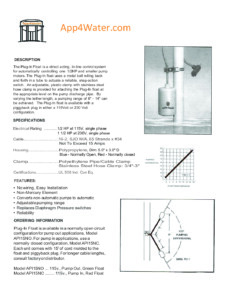

3'' Mercury Plug-In Control Float Switch Brochure

3'' Mercury Plug-In Control Float Switch Brochure

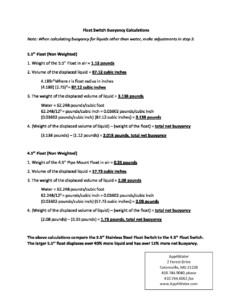

Float Switch Buoyancy Calculations

Float Switch Buoyancy Calculations
